Professional Paint Coating Thickness Gauge Meter - Digital Paint Tester for Walls, Metal & Wood - Accurate Paint Measurement Tool for DIY, Construction & Automotive Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:26719303
Product Description

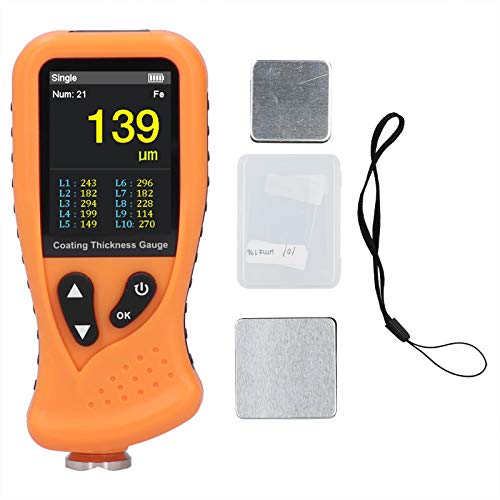

Feature:1. Single measurement and continuous measurement methods, automatic substrate recognition (magnetic metal and non‑magnetic metal).2. Basic and 0 point calibration, upper and lower limit alarm function, open/close um&mil display unit.3. With point graph data analysis, color screen high‑definition display, 2 languages with menu operation.4. The color portable coating thickness gauge with high‑definition display can quickly, non‑destructively and accurately measure coating thickness.5. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.Specification:Condition: 100% Brand NewItem Type: Coating Thickness GaugeMaterial: ABSWeight: Approx. 725g/25.6ozProduct Size: Approx. 52.9 x 26 x 117mm/2.08 x 1.02 x 4.61inMeasuring Range: 0~1300um / 51milResolution: [0.1μm ( 150μm±(3%H +1μm)Magnetic Metal SubstrateMinimum Diameter: Approx. 12mm/0.5inMinimum Thickness: Approx. 0.5mm/0.02inNon-Magnetic Metal SubstrateMinimum Diameter: Approx. 50mm/2inMinimum Thickness: Approx. 0.5mm/0.02inMinimum Radius of CurvatureMagnetic Convex Substrate: Approx. 2mm/0.1inMagnetic Concave Substrate: Approx. 11mm/0.4inWorking Voltage: DC 3.7V (Lithium Battery Capacity 1000mAh) Package List:1 x Digital Coating Thickness Gauge1 x Iron Substrate1 x Aluminum Substrate6 x Calibration Board1 x USB Data Cable1 x Lanyard1 x Plastic Box
Product Features
【AUTOMATIC SUBSTRATE RECOGNITION FUNCTION】With automatic substrate recognition (magnetic metal and non‑magnetic metal) function.Coating Thickness Gauge is made of high quality ABS material, durable, practical, wear-resisting, high temperature resistant.
【THREE CALIBRATION MODES】There are three calibration modes: basic setting, offset, calibration. Switchable measuring unit: m/mm/mil, fully automatic four directional screen rotation, you can see clearly in any direction.
【AUTO READS】Coating Paint thickness gauge Designed with dual technology, the non-destructive Coating Thickness Tester takes the work out of testing coatings by providing automatic recognition for both ferrous and non-ferrous substrates.
【A USEFUL, VERSATILE METER FOR MANY APPLICATIONS】 Ideal for checking the car painting thickness checker, like used cars paint, powder coating, anodized aluminum, bathroom fittings, bike frames, stadium seats, outdoor sheds, furniture, swing sets, cabinets and lockers, computers, appliances, and toys.
【FUCTION】Measure the thickness of the non‑magnetic coating on the magnetic metal substrate and the thickness of the non‑metallic coating on the non‑magnetic metal substrate.
