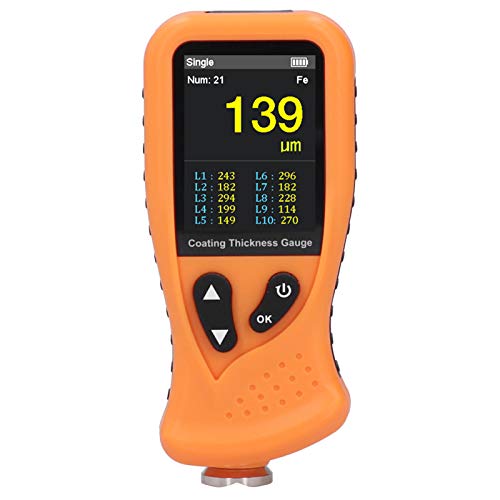

Digital Paint Thickness Gauge - Professional Coating Measurement Tool with HD Display | Durable Paint Tester for Automotive, Marine & Industrial Applications | Chemical Resistant Surface Analyzer for Quality Control

Product Description

Feature:1. Single measurement and continuous measurement methods, automatic substrate recognition (magnetic metal and non‑magnetic metal).2. Basic and 0 point calibration, upper and lower limit alarm function, open/close um&mil display unit.3. With point graph data analysis, color screen high‑definition display, 2 languages with menu operation.4. The color portable coating thickness gauge with high‑definition display can quickly, non‑destructively and accurately measure coating thickness.5. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.Specification:Condition: 100% Brand NewItem Type: Coating Thickness GaugeMaterial: ABSWeight: Approx. 725g/25.6ozProduct Size: Approx. 52.9 x 26 x 117mm/2.08 x 1.02 x 4.61inMeasuring Range: 0~1300um / 51milResolution: [0.1μm ( 150μm±(3%H +1μm)Magnetic Metal SubstrateMinimum Diameter: Approx. 12mm/0.5inMinimum Thickness: Approx. 0.5mm/0.02inNon-Magnetic Metal SubstrateMinimum Diameter: Approx. 50mm/2inMinimum Thickness: Approx. 0.5mm/0.02inMinimum Radius of CurvatureMagnetic Convex Substrate: Approx. 2mm/0.1inMagnetic Concave Substrate: Approx. 11mm/0.4inWorking Voltage: DC 3.7V (Lithium Battery Capacity 1000mAh) Package List:1 x Digital Coating Thickness Gauge1 x Iron Substrate1 x Aluminum Substrate6 x Calibration Board1 x USB Data Cable1 x Lanyard1 x Plastic Box
